Description

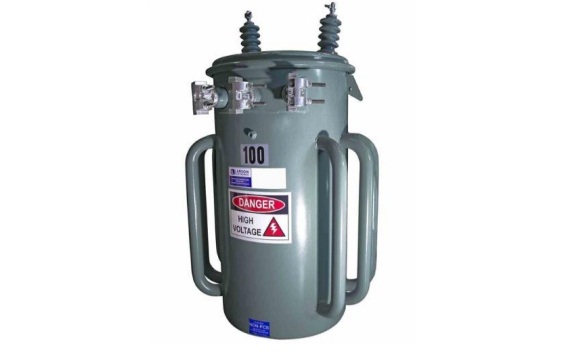

50 KVA Single Phase Pole Mount Distribution Transformer – 13200Y/7620 Grounded Wye Primary, 120/240V Secondary

Phase:
Single Phase
Capacity:
50 KVA
Primary Voltage:
13200Y/7620 Grounded Wye (2 Wire) Primary BIL: 95 kV
Secondary Voltage:
120/240V (L-L-N) Frequency: 60 Hz
Temperature Rise:
65°C
Primary Insulation:
Porcelain High Voltage Bushings – Dual Primary Bushings
Secondary Insulation:
(3) Clamp Type Terminals
Insulation Fluid:
Mineral Oil – Non PCB Fluid
Oil Level Marking:
Internal
Cooling Class:
ONAN
Pressure Relief Device:
Automatic
Fill Valve:
Included
