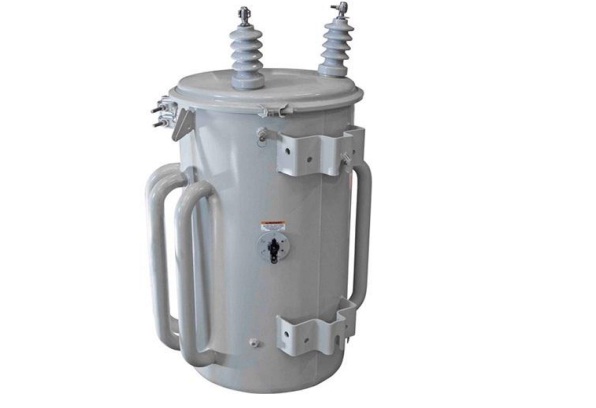

Description

Phase:
Single Phase Conforms to ANSI / IEEE Standard
C57.12.20
Capacity: 25 KVA Lifting Lugs Included
Primary Voltage: 7620/13200V Grounded Wye (2 Wire)
Primary BIL: 95 kV
Secondary Voltage: 120/240V (L-L-N)
Freque
ncy: 60
Hz
Tempe
rature
Rise:
65°C
Forced
Air
(Fans):
None
Tap
Chang
er: –
Primary Insulation: Porcelain High Voltage Bushings – Dual Primary Bushings
Secondary
Insulation: (3)
Bushings Well
Bushings w/ Inserts:
– Efficiency: –
Insulation Fluid: Mineral Oil – Non PCB Fluid
Fluid Capacity: –
Oil Level
Marking:
Internal
Cooling
Class:
ONAN
Pressure Relief Device: Automatic
Fill Valve: Included
Surge Arrestors: Lightning Arrestor on H1 Primary Terminal
Surge Arrestor Mounting Provision: Mounting Provisions for Installing
Lightning Arrestor on H2 Primary Terminal
Efficiency @ 100% Load: 98.95%
Impedance (approx): 3%
Winding Material: Copper
Core Material: Grain Oriented Steel
Terminals: Tin Plated Primary and Secondary – Accepts Copper or Aluminum Connections
Ambient Temperature Rating: –
Housing: Coated Steel w/ Corrosion Resistant Cover Band, Removable Top Cover
Paint Type: White
Mounting: Pole Mount via Hangar Brackets
Lifting Lugs: Included
Grounding: Tank Grounding Provisions
Dimensions: 20″ x 22″ x 38″
Weight: 350 lb
