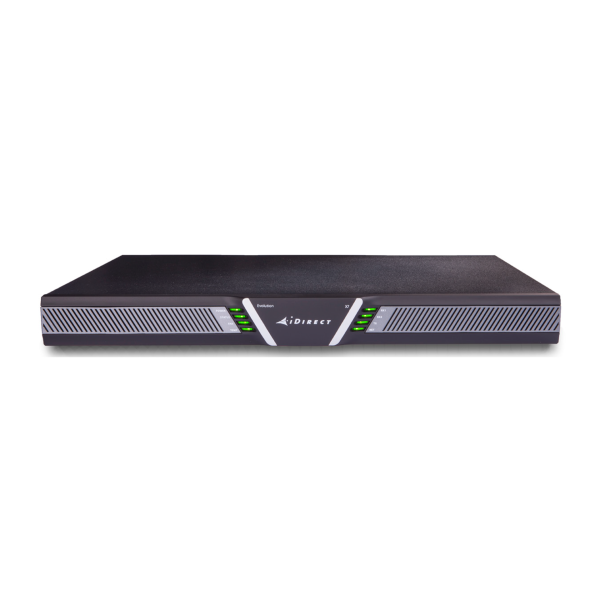

X7 Satellite Router

The X7 satellite router is the first of iDirect’s next-generation family of remotes. Built on an entirely new multi-core hardware system, the X7 is optimized to deliver best-in-class DVB-S2/ACM and A-TDMA throughput performance. The X7 also features SCPC on the return and an 8-port embedded switch for managing multiple user groups. The rack-mountable remote comes with multiple choices of embedded power supply units and dual DVB-S2 demodulators with fully independent RF chains. This makes it uniquely suited for a range of enterprise voice and data services while simultaneously receiving multicast channels over the same or a second transponder or satellite – even combining spot-beam HTS capacity and Ku- and C-Band capacity.

Powerful, next-generation remote supporting DVB-S2/ACM on the outbound and ATDMA and SCPC* on the return, with performance capabilities for the most demanding applications. It features a compact, rack-mount design, embedded 8-port switch, a 2nd DVB-S2 demodulator, variant power supply configurations and Web iSite support making it an ideal enterprise class solution.

Features

• Option 1: 24VDC BUC PSU
• Option 2: Switchable 24/48VDC BUC PSU
• Up to 100 Mbps of combined inbound and outbound throughput
• 1 RU high remote chassis fitting in standard telecom racks
• Licensable 2nd demodulator for multicast traffic
• Variant power supply module configurations
• Dual image support and Web iSite for ease of deployment and upgrades
• Communications-on-the-Move (COTM) support
• AES Encryption
