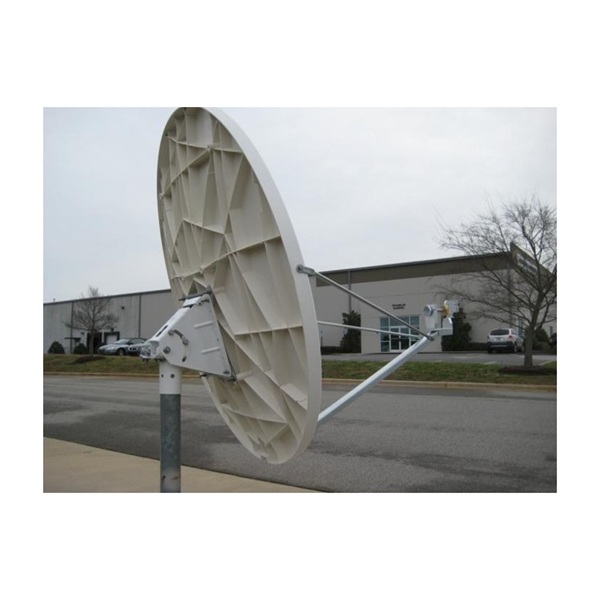

The CPI Satcom & Antenna Technologies Inc. (CPI SAT) 1.2m Ka-Band Circular Polarization VSAT Antenna Series 3122 is ideally suited for demanding commercial applications. The one-piece compression molded reflector is precision manufactured for high-efficiency Ka-Band operation.
The Az/El mount is designed for easy installation on standard 2-7/8″ OD Installation Mounts and features fine Azimuth and Elevation Adjustments. The Az/El mount is constructed from heavy gauge galvanized steel for strength and corrosion resistance.
Features:
-Ka Band Circular 2 Port Tx Rx Feed Assembly
-Tx 29.2 – 31.0 GHz
-Rx 19.4 – 21.2 GHz
-Fixed Az/El Galvanized Mount
Options:
- Non Penetrating Roof Mount
- Pedestal Mount
- BUC
- LNB
- Cables
- Connectors
- Modems
