Description

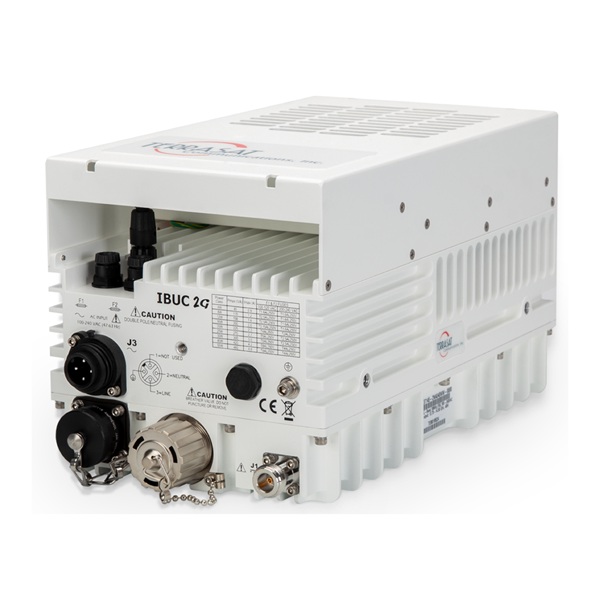

Terrasat IBUC2G BUC with 25W Psat GaN Ka-Band. Available in AC or DC Power and in Commercial Ka-Band or Military Ka-Band. All BUCs are sold with a Mounting Kit and Ethernet Mating Connector.
Commercial Ka-Band Frequency: 29.0-30.0GHz
Military Ka-Band Frequency: 30.0-31.0GHz
All Terrasat IBUCs are intelligent BUCs that communicate via FSK to compatible modems and provide alternate TCP/IP, RS232, and RS485 interfaces. The IBUC easily integrates with your NMS so you have a complete view into all elements of your remote satellite terminals. The IBUC incorporates a rich set of features such as:
All IBUCs are equipped with cutting-edge intelligent technology
- Highest quality & exacting performance guaranteed through individual unit testing over temperature
- Superior linearity for maximum useable output power
- Amplifier overdrive protection
- User-selectable AGC/ALC for optimal performance & compatibility with modem adaptive coding
- New high capacity microprocessor & extended M&C functions
- Weatherized RJ45 Ethernet interface for simplified connection
- Selectable AGC or ALC for improved space segment management and compliance with your satellite operator’s technical requirements
- Extensive in-built diagnostics for simplified installation, monitoring, and troubleshooting
- TCP/IP interface with embedded web pages for management and control
Ultimate Management & Control
- Local Web Interface & NMS-Friendly SNMP
- 70+ User Configurable Thresholds & Alarms
- Upgraded Event Log with 1,000 Sensor Readings
- Performance Trend Analysis Tools & Statistical logs
- Embedded Web Pages for Universal Web Browser Access
Options
- 1+1 Transmit Redundancy with Eco-Mode
- High Stability Internal 10 MHz Reference with Auto-Detection
- AC or DC Input Models
- Mounting Brackets
- Optional Type N, F-Type
- Handheld Terminal
- Cyber Hardened Core M&C
- WGS (Wideband Global SAT COM) compatible
The IBUC also redefines protection switching with the logic and drivers built into the BUC.
