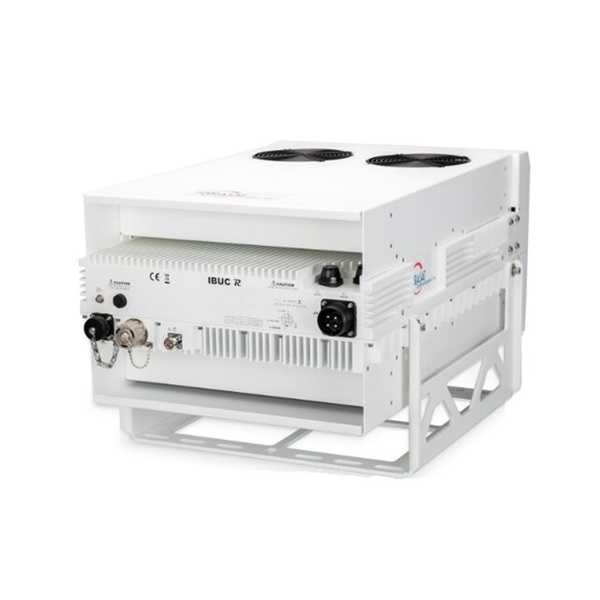

Terrasat IBUC R C-Band 125W Block Upconverter

Description

Terrasat IBUCR BUC with 125W P1dB GaAs SSPA C-Band. Available in AC or DC Power and in Standard C-Band, Extended C-Band or Full C-Band. All BUCs are sold with a Mounting Kit and Ethernet Mating Connector.

Standard C-Band Frequency: 5.85-6.425GHz

Extended C-Band Frequency: 5.85-6.65GHz

Full C-Band Frequency: 5.85-6.725GHz

All Terrasat IBUCs are intelligent BUCs that communicate via FSK to compatible modems and provide alternate TCP/IP, RS232, and RS485 interfaces. The IBUC easily integrates with your NMS so you have a complete view into all elements of your remote satellite terminals. The IBUC incorporates a rich set of features such as:

All IBUCs are equipped with cutting-edge intelligent technology

• Highest quality & exacting performance guaranteed through individual unit testing over temperature
• Superior linearity for maximum useable output power
• Amplifier overdrive protection
• User-selectable AGC/ALC for optimal performance & compatibility with modem adaptive coding
• New high capacity microprocessor & extended M&C functions
• Weatherized RJ45 Ethernet interface for simplified connection
• Selectable AGC or ALC for improved space segment management and compliance with your satellite operator’s technical requirements
• Extensive in-built diagnostics for simplified installation, monitoring, and troubleshooting
• TCP/IP interface with embedded web pages for management and control

Ultimate Management & Control

• Local Web Interface & NMS-Friendly SNMP
• 70+ User Configurable Thresholds & Alarms
• Upgraded Event Log with 1,000 Sensor Readings
• Performance Trend Analysis Tools & Statistical logs
• Embedded Web Pages for Universal Web Browser Access

Options

• 1+1 Transmit Redundancy with Eco-Mode
• High Stability Internal 10 MHz Reference with Auto-Detection
• AC or DC Input Models
• Mounting Brackets
• Optional Type N, F-Type, or TNC Input Connectors
• Handheld Terminal
• Cyber Hardened Core M&C
• WGS (Wideband Global SAT COM) compatible

The IBUC also redefines protection switching with the logic and drivers built into the BUC.
