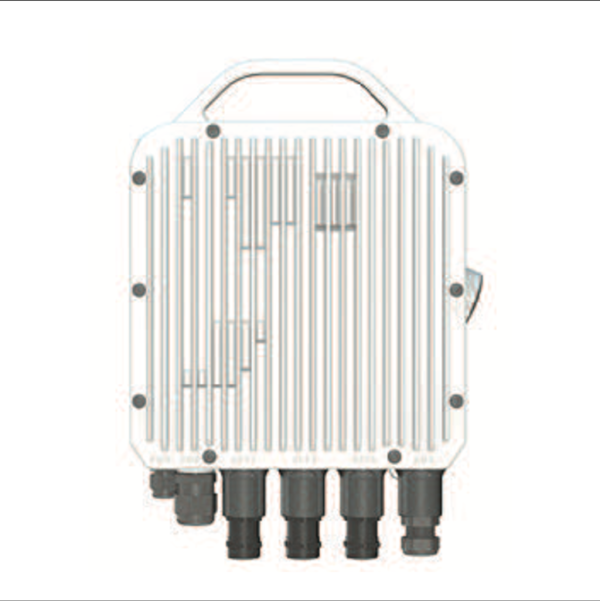

Bridgewave Navigator DT

Navigator DT is a dual-transceiver all outdoor, IP radio operating from 6GHz to 42GHz, modulations to 4096QAM, and ultra-wide bandwidth operation to 112MHz ETSI and 160MHz ANSI. Navigator DT can achieve capacities up to 5.5Gbps per radio without compression.

Each Navigator DT transceiver supports dual sub-carriers resulting in up to four sub-carriers per dual transceiver radio to increase capacity without requiring any additional equipment.

Navigator DT also includes XPIC and MIMO frequency re-use technologies to double and quadruple capacity using a single licensed channel. XPIC and 2+0 operation are supported using just a single radio.

Navigator DT is easily and inexpensively field convertible to different sub-bands via user friendly customer replaceable diplexers. Sparing only needs to include the base radio resulting in no longer a need to spare radios in specific sub-bands.

Navigator DT is an ideal, highly integrated all-outdoor radio for the most demanding applications.

Performance

• Up to 5.5Gbps per radio using quad sub-carriers without compression
• Dual transceivers with each transceiver supporting single carrier or dual sub-carrier operation to efficiently increase capacity without adding any more equipment
• QPSK to 4096QAM
• Ultra wide bandwidth operation to 160MHz ANSI and 112MHz ETSI
• 2x (1+0), 1+1 HSB, 2+0, 2+2 HSB, and 4+0 operation
• XPIC supported using a single dual transceiver radio
• LOS 4×4 MIMO to quadruple capacity and 2×2 MIMO to double capacity using only a single license
• Space Diversity and Frequency Diversity available
• Built-in Advanced Digital Pre-Distortion to drive higher transmission performance
• Customer replaceable diplexers to ease operational logistics and improve system flexibility
• Built-in OMT or coupler to combine carriers from each transceiver
• Different frequencies supported in single dual carrier radio (e.g. 6GHz and 11GHz)
• Adaptable antenna interface supports third party antennas to ease migration and upgrade
• Header and payload compression to further increase capacity
• 2 x 10GbE Ethernet interfaces (optional)
• 2 x CPRI interfaces (optional)
• SyncE and IEEE1588v2
• AES256 encryption
• No-touch WiFi maintenance interface (optional)
• GPS antenna (optional)
• Time based feature licensing available

Applications

Whatever your business or the goals for your network infrastructure, EtherFlex Navigator can play a critical role in backhaul performance, reliability, and security.

• 4G/5G backhaul
• Fiber extension
• Fiber backup
• Leased line replacement
• Small cell backhaul
• Campus connectivity
• Disaster recovery
