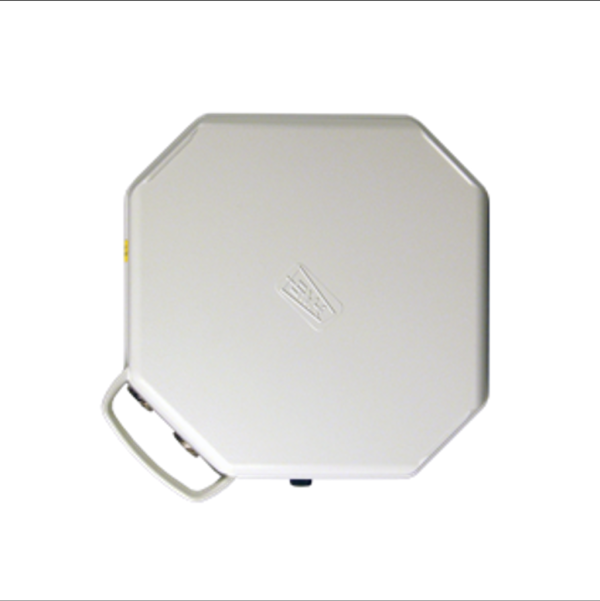

SIAE ALFOplus Series

ALFOplus is a Full-Outdoor, full IP Next Generation Microwave Radio. Its zero footprint solution allows for fast rollout of 3G and LTE full IP backhaul network. Ideal for a fast and flexible evolution towards full IP networks it offers best in class performances and lowest power consumption for a green but performing network.

ALFOplus combines compactness, best in class performances and lowest power consumption in a single efficient and cost effective full-outdoor device. It offers up to 1Gbps transport capacity also liaising over higher modulation schemes of 1024 QAM. ALFOplus is optimized for TCP/IP transport compliant to LTE traffic needs including packet synchronization techniques.

Main Features:

• 4QAM to 1024QAM modulations
• ACM adaptive code and modulation
• MultiLayer Header Compression
• 500 Mbps throughput
• Best in Class for SystemGain
• FCC/ETSI Channels supported
• Advanced Pure IP engine
• CISCO Microwave Adaptive Bandwidth feature interworking
• Synchronous Ethernet support
• IEEE 1588 v2 support
• Extended buffer for TCP/IP efficiency in LTE networks
• 1+0 Non-Protected Configuration
• Optical or Electrical port options
• Lowest power consumption
• Integrate antennae up to 1.8 m
• Unified Network Management System – NMS5
