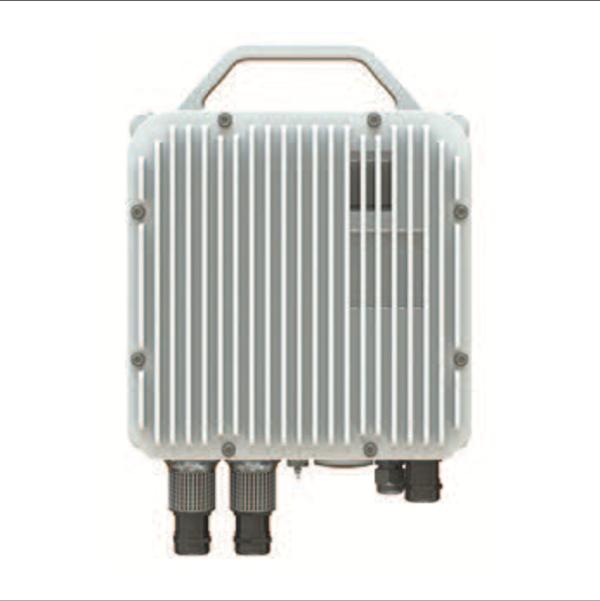

Bridgewave Navigator ST

Navigator ST is a single-transceiver all outdoor, IP radio system operating from 6GHz to 42GHz, modulations to 4096QAM, and ultra-wide bandwidth operation to 112MHz ETSI and 160MHz ANSI. Navigator ST can achieve capacities up to 2.75Gbps per radio without compression.

Navigator ST can operate with either a single carrier or dual sub-carriers to efficiently increase capacity without requiring any additional equipment.

Navigator ST is easily and inexpensively field convertible to different sub-bands via user friendly customer replaceable diplexers. Radio sparing only needs to include the base radio resulting in no longer a need to spare radios in specific sub-bands.

Navigator ST is an ideal, highly integrated all-outdoor radio for the most demanding applications.

Performance

• Up to 2.75 Gbps per radio using two sub-carriers without compression
• Single carrier or dual sub-carrier operation to efficiently increase capacity without adding more equipment
• QPSK to 4096QAM
• Ultra wide bandwidth operation to 160MHz ANSI and 112MHz ETSI
• 1+0, 1+1 HSB, and 2+0 operation
• Space Diversity and Frequency Diversity available
• Built-in Advanced Digital Pre-Distortion to drive higher transmission performance
• Customer replaceable diplexers to ease operational logistics and improve system flexibility
• Adaptable antenna interface option supports third party antennas to ease migration and upgrade
• Header and payload compression to further increase capacity
• 2 x 10GbE Ethernet interfaces (optional)
• SyncE and IEEE1588v2
• AES256 encryption
• No-touch WiFi maintenance interface (optional)
• Time based feature licensing available

Applications

Whatever your business or the goals for your network infrastructure, EtherFlex Navigator can play a critical role in backhaul performance, reliability, and security.

• 4G/5G backhaul
• Fiber extension
• Fiber backup
• Leased line replacement
• Small cell backhaul
• Campus connectivity
• Disaster recovery
